Engine suddenly dies

Hey guys, Iím having a weird issue with my 03 K3. Bike has lots of miles (152k) started acting up a few months ago. Cruising around 80 mph and suddenly dies .full bog. Lights and instruments fully lit. Engine dies and I hit the right on/off switch and clutch it since Iím still rolling and it fires right up . I thought maybe kick stand switch , so disconnected it. Then I thought maybe fuel relay, so replaced it. Now Iím thinking may right hand on / off switch? I donít know why else something would shut the fuel pump off. I thought maybe pump, but when I restart it , it runs perfectly. Pump is a brand new oe with maybe 10k on it. What else would stop the fuel pump from running??
Thanks in advance
Jim
Jimmy boy is offline
Sponsored Links
Advertisement

post #2 of 26 (permalink) Old 09-05-2019, 06:27 PM
Squid

Join Date: Sep 2018
Posts: 9
When the bike stalls, does "CHEC" show on the dash?
peter079 is offline
post #3 of 26 (permalink) Old 09-05-2019, 07:21 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Quote:
Originally Posted by peter079 View Post
When the bike stalls, does "CHEC" show on the dash?
Good question. Iím going 80 on freeway and all Iím trying to do is restart the bike w/ out gettin killed. I will say if you hit starter or try to jump it when it dies , it wonít unless you flip the on/off switch on right handlebar. Iím going to have to try to look at the dash.
What if there is or isnít? What could it point to?
Thanks
Jimmy boy is offline
Sponsored Links
Advertisement

post #4 of 26 (permalink) Old 09-05-2019, 08:12 PM
Lifetime Premium

rv6john's Avatar

Join Date: Mar 2013
Location: In the twisties around Hendersonville, NC
Posts: 8,052
Quote:
Originally Posted by Jimmy boy View Post
Good question. Iím going 80 on freeway and all Iím trying to do is restart the bike w/ out gettin killed. I will say if you hit starter or try to jump it when it dies , it wonít unless you flip the on/off switch on right handlebar. Iím going to have to try to look at the dash.
What if there is or isnít? What could it point to?
Thanks
Because if "CHEC" shows in the temp window a few seconds after it dies, it would indicate that the ECM is not sending data to the cluster. Either the ECM is losing power for some reason or is failing itself.

Quote:
Originally Posted by Chuckster View Post
If you think reading is tricky, how the hell are you going to follow troubleshooting directions?
"Riding well is difficult, riding poorly is easy and painful."
- Nick Ienatsch


"We're all here because we're not all there" - Guy Favron on Gold Rush

K6 750
rv6john is offline
post #5 of 26 (permalink) Old 09-05-2019, 08:39 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Quote:
Originally Posted by rv6john View Post
Because if "CHEC" shows in the temp window a few seconds after it dies, it would indicate that the ECM is not sending data to the cluster. Either the ECM is losing power for some reason or is failing itself.
Thatís good info John. Letís say it doesnít show chec? Handle bar switch or?
Jimmy boy is offline
post #6 of 26 (permalink) Old 09-06-2019, 05:59 AM
Lifetime Premium

rv6john's Avatar

Join Date: Mar 2013
Location: In the twisties around Hendersonville, NC
Posts: 8,052
Quote:
Originally Posted by Jimmy boy View Post
Thatís good info John. Letís say it doesnít show chec? Handle bar switch or?
It takes about 3 seconds for the cluster to show CHEC after the ECM stops sending data according to the manual. Again, you can see the time interval by turning on the ignition then moving the kill switch to stop after things have booted up.

If it does not show CHEC, then the ECM still has power and is communicating so the ignition switch, kill switch and side stand relay are working correctly. All these interrupt power to the ECM.

Otherwise, something else is killing the bike. In the absence of an FI light and code (such as the TOS) it is probably not an ECM issue. Could be the fuel pump relay? Just a guess.

Report back if it shows CHEC first.

Quote:
Originally Posted by Chuckster View Post
If you think reading is tricky, how the hell are you going to follow troubleshooting directions?
"Riding well is difficult, riding poorly is easy and painful."
- Nick Ienatsch


"We're all here because we're not all there" - Guy Favron on Gold Rush

K6 750
rv6john is offline
post #7 of 26 (permalink) Old 09-06-2019, 08:43 AM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Quote:
Originally Posted by rv6john View Post
It takes about 3 seconds for the cluster to show CHEC after the ECM stops sending data according to the manual. Again, you can see the time interval by turning on the ignition then moving the kill switch to stop after things have booted up.

If it does not show CHEC, then the ECM still has power and is communicating so the ignition switch, kill switch and side stand relay are working correctly. All these interrupt power to the ECM.

Otherwise, something else is killing the bike. In the absence of an FI light and code (such as the TOS) it is probably not an ECM issue. Could be the fuel pump relay? Just a guess.

Report back if it shows CHEC first.
Changed the relay a few days ago. I will say that trying to start it with the starter after it dies w/ out turning track hand switch off /on will just crank and crank. Once I toggle rat switch it fires immediately.
I also had a ecu go out before. It was a bucking bronco snorting and popping and a little dangerous. When it fires now, itís smooth as glass normal . This is why I feel itís only the fuel that stops?
Jimmy boy is offline
post #8 of 26 (permalink) Old 09-06-2019, 12:21 PM
Novice

Join Date: Aug 2019
Posts: 78
Is this a 600, 750, or 1000?

John may know better but as I understand it, the TOS only produces a FI error (C23) if the sensor is producing an out-of-spec voltage. If it's in a tip-over state but otherwise functioning normally, the engine will turn off without an error. So make sure that the TOS hasn't come off its mount.

It's fairly easy to rig up an indicator light to tell if the ECM is losing power. You can run leads from the O/W and B/W leads on the dealer mode connector forward to a 12 V LED located somewhere around the cluster. This doesn't have to be pretty, just use some duct tape to hold things in place. If the light goes out, the ECM is somehow losing power. That normally would be related to the interlock relay or kickstand switch. If the light stays on but the engine dies, that's normally due to the fuel pump losing power; either it's bad or isn't getting power (bad electrical connection or ECM is turning it off). You could move the LED over to the fuel pump relay (Y/R lead) to check that out. But you'll have to find somewhere for a ground connection, which could be the dealer mode connector.
Jimmy boy and rv6john like this.

Last edited by billv; 09-06-2019 at 12:30 PM.
billv is offline
post #9 of 26 (permalink) Old 09-06-2019, 04:44 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Quote:
Originally Posted by billv View Post
Is this a 600, 750, or 1000?

John may know better but as I understand it, the TOS only produces a FI error (C23) if the sensor is producing an out-of-spec voltage. If it's in a tip-over state but otherwise functioning normally, the engine will turn off without an error. So make sure that the TOS hasn't come off its mount.

It's fairly easy to rig up an indicator light to tell if the ECM is losing power. You can run leads from the O/W and B/W leads on the dealer mode connector forward to a 12 V LED located somewhere around the cluster. This doesn't have to be pretty, just use some duct tape to hold things in place. If the light goes out, the ECM is somehow losing power. That normally would be related to the interlock relay or kickstand switch. If the light stays on but the engine dies, that's normally due to the fuel pump losing power; either it's bad or isn't getting power (bad electrical connection or ECM is turning it off). You could move the LED over to the fuel pump relay (Y/R lead) to check that out. But you'll have to find somewhere for a ground connection, which could be the dealer mode connector.
It a 03 1000. I never looked at the tip over switch. I actually donít even know where it mounts. I guess thatís a good thing 😬
Jimmy boy is offline
post #10 of 26 (permalink) Old 09-06-2019, 06:34 PM
Lifetime Premium

rv6john's Avatar

Join Date: Mar 2013
Location: In the twisties around Hendersonville, NC
Posts: 8,052
Your comment about the starter cranking the bike but will not run till you recycle the kill switch sure sounds like a possible TOS issue as billyv mentioned.

But I also thought that there should be an FI fault code if the ECM is not happy with the TOS condition.
Jimmy boy likes this.

Quote:
Originally Posted by Chuckster View Post
If you think reading is tricky, how the hell are you going to follow troubleshooting directions?
"Riding well is difficult, riding poorly is easy and painful."
- Nick Ienatsch


"We're all here because we're not all there" - Guy Favron on Gold Rush

K6 750
rv6john is offline
post #11 of 26 (permalink) Old 09-07-2019, 12:19 PM
Novice

Join Date: Aug 2019
Posts: 78

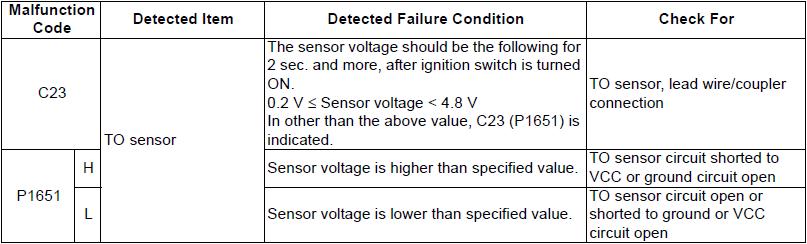

^My service manual says that the C23 error is produced if the sensor voltage is less than .2 or greater than 4.8 V. It goes on to say that the voltage is .4-1.4 V normally and 3.7-4.4 V when leaning more than 65į. I was curious and measured mine. It was .98 V until roughly 45į when it suddenly jumped to 4.4 V. That's what led me to believe that a tip-over will turn the engine off without the error. There's some circuitry, probably Hall effect, inside the sensor that's responsible for the bi-stable behavior.

The sensor is located beneath the tank and just ahead of the battery bulkhead. See 4-12 or 9-6 in the service manual.

Last edited by billv; 09-07-2019 at 12:41 PM.
billv is offline
post #12 of 26 (permalink) Old 09-07-2019, 02:17 PM
Lifetime Premium

rv6john's Avatar

Join Date: Mar 2013
Location: In the twisties around Hendersonville, NC
Posts: 8,052
Quote:
Originally Posted by billv View Post
^My service manual says that the C23 error is produced if the sensor voltage is less than .2 or greater than 4.8 V. It goes on to say that the voltage is .4-1.4 V normally and 3.7-4.4 V when leaning more than 65į. I was curious and measured mine. It was .98 V until roughly 45į when it suddenly jumped to 4.4 V. That's what led me to believe that a tip-over will turn the engine off without the error. There's some circuitry, probably Hall effect, inside the sensor that's responsible for the bi-stable behavior.

The sensor is located beneath the tank and just ahead of the battery bulkhead. See 4-12 or 9-6 in the service manual.
I'll disagree. On his bike (a K3 600, 750 or 1k they are all the same) the TOS voltage only goes to the ECM which interprets it. If the ECM sees a value it does not like, it shuts off the fuel pump relay causing the bike to stop and since it sees this fault, it ports the C23 fault code to the cluster. The TOS does not shut the bike off directly.

Quote:
Originally Posted by Chuckster View Post
If you think reading is tricky, how the hell are you going to follow troubleshooting directions?
"Riding well is difficult, riding poorly is easy and painful."
- Nick Ienatsch


"We're all here because we're not all there" - Guy Favron on Gold Rush

K6 750
rv6john is offline
post #13 of 26 (permalink) Old 09-07-2019, 03:29 PM
Novice

Join Date: Aug 2019
Posts: 78
^I'm not saying that the TOS shuts things down by itself. All it's doing is sending a signal to the ECM. If the voltage is outside of .2 to 4.8 V, the ECM will send the C23 error to the cluster. Don't know if it will also shut the engine off under those conditions, i.e. a faulty sensor. But a properly functioning sensor can send a signal to the ECM that will trigger an engine shutdown but, as best I can tell, not be an error condition.
billv is offline
post #14 of 26 (permalink) Old 09-07-2019, 03:42 PM
Lifetime Premium

rv6john's Avatar

Join Date: Mar 2013
Location: In the twisties around Hendersonville, NC
Posts: 8,052
Quote:
Originally Posted by billv View Post
^I'm not saying that the TOS shuts things down by itself. All it's doing is sending a signal to the ECM. If the voltage is outside of .2 to 4.8 V, the ECM will send the C23 error to the cluster.
True. And the computer (ECM) monitors the voltage and if it's out of range than it does two things 1. shut off the fuel pump relay 2. send the fault code to the cluster. It does not do one without the other.
The C23 is not a faulty sensor check, just monitors that the values are in range. It could be bad, unplugged or..... tipped over.

Quote:
Originally Posted by billv View Post
Don't know if it will also shut the engine off under those conditions, i.e. a faulty sensor. But a properly functioning sensor can send a signal to the ECM that will trigger an engine shutdown but, as best I can tell, not be an error condition.
Easy check. Start your bike, lay it over, the engine will stop in a few seconds, the red FI light will go on and "FI" will flash in the temp window indicating the C23 fault.

Quote:
Originally Posted by Chuckster View Post
If you think reading is tricky, how the hell are you going to follow troubleshooting directions?
"Riding well is difficult, riding poorly is easy and painful."
- Nick Ienatsch


"We're all here because we're not all there" - Guy Favron on Gold Rush

K6 750
rv6john is offline
post #15 of 26 (permalink) Old 09-07-2019, 09:29 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Quote:
Originally Posted by billv View Post
^My service manual says that the C23 error is produced if the sensor voltage is less than .2 or greater than 4.8 V. It goes on to say that the voltage is .4-1.4 V normally and 3.7-4.4 V when leaning more than 65į. I was curious and measured mine. It was .98 V until roughly 45į when it suddenly jumped to 4.4 V. That's what led me to believe that a tip-over will turn the engine off without the error. There's some circuitry, probably Hall effect, inside the sensor that's responsible for the bi-stable behavior.

The sensor is located beneath the tank and just ahead of the battery bulkhead. See 4-12 or 9-6 in the service manual.
Thanks billy!
Jimmy boy is offline
post #16 of 26 (permalink) Old 09-09-2019, 12:50 AM
Novice

Join Date: Aug 2019
Posts: 78
"C23 is not a faulty sensor check"

C23 is a malfunction code. A tip-over is not a malfunction. The 4.4 V tip-over voltage is in range. There's no mention of it here (K9 1000):


If C23 actually does come on in a tip-over, then the service manuals are in error. I've thought about trying it but tipping it over 45-65į is not to be trifled with. The red LED will come on because there's no oil pressure. I think a better way to test is to put it in dealer mode, start the bike, and tilt the sensor by hand. Either the manual is wrong or it should turn off without showing C23.

Last edited by billv; 09-09-2019 at 01:00 AM.
billv is offline
post #17 of 26 (permalink) Old 09-09-2019, 06:46 AM
Mod of the North.

Tinsnips's Avatar

Join Date: Mar 2011
Location: Take a wild guess...
Posts: 24,377
I have moved this to the tech forum.
rv6john and Spyder13 like this.

Favorite Quote: "Told y'all I was gonna blow shit up." -Fubar



Total MPG Wins: 189 (Retired)
Tinsnips is offline
post #18 of 26 (permalink) Old 09-09-2019, 04:07 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
I’m going to get it out today and see if chec comes on when it dies.
Jimmy boy is offline
post #19 of 26 (permalink) Old 09-12-2019, 03:24 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Rode it about 150 miles. First 75 it was flawless. 2nd day 75 started cutting in and out just a couple times. Totally different from before where it would fully shut the motor off. Iím starting to think ecu . Itíll probably start to get progressively worse and show itís ugly head.

Does any know if a ecu can be tested off the bike?
Jimmy boy is offline
post #20 of 26 (permalink) Old 09-18-2019, 07:04 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Quote:
Originally Posted by rv6john View Post
It takes about 3 seconds for the cluster to show CHEC after the ECM stops sending data according to the manual. Again, you can see the time interval by turning on the ignition then moving the kill switch to stop after things have booted up.

If it does not show CHEC, then the ECM still has power and is communicating so the ignition switch, kill switch and side stand relay are working correctly. All these interrupt power to the ECM.

Otherwise, something else is killing the bike. In the absence of an FI light and code (such as the TOS) it is probably not an ECM issue. Could be the fuel pump relay? Just a guess.

Report back if it shows CHEC first.
Today it snowed itís ugly head. Died the same way. Check came on.cycled on/off switch fired up and a minute later died . Move the switch it fired and then died and same over and over . Maybe like10 Times. Sat at the side of the road and even noticed pump wouldnít come on. Then it did and I made it home!
Iím really thinking the ecu is gettin hot and starts to scatter. Every time this happens Iím in the same area which to means to me ecu. What do you guys think?
Jimmy boy is offline
post #21 of 26 (permalink) Old 09-18-2019, 07:31 PM
Lifetime Premium

rv6john's Avatar

Join Date: Mar 2013
Location: In the twisties around Hendersonville, NC
Posts: 8,052
Without reading everything from a month ago. Did you check the kill switch itself?

The reason I ask is that I would not think a failing ECM would immediately come to life again after cycling the kill switch. But an intermittent kill switch will do just what you describe.

Quote:
Originally Posted by Chuckster View Post
If you think reading is tricky, how the hell are you going to follow troubleshooting directions?
"Riding well is difficult, riding poorly is easy and painful."
- Nick Ienatsch


"We're all here because we're not all there" - Guy Favron on Gold Rush

K6 750
rv6john is offline
post #22 of 26 (permalink) Old 09-18-2019, 08:19 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Quote:
Originally Posted by rv6john View Post
Without reading everything from a month ago. Did you check the kill switch itself?

The reason I ask is that I would not think a failing ECM would immediately come to life again after cycling the kill switch. But an intermittent kill switch will do just what you describe.
I mean I guess it’s a possibility . The only thing is ,why would it do it around same place everytime? If it was a switch I’d think it would be more random? If it was the switch, that’s the cheapest way to go though.

Last edited by Jimmy boy; 09-18-2019 at 08:22 PM.
Jimmy boy is offline
post #23 of 26 (permalink) Old 09-19-2019, 07:56 PM
Squid

Join Date: Sep 2018
Posts: 9
If "CHEC" came on when the bike stalled, then I think we came eliminate the fuel pump as being the problem. Have you thought about doing what @billv said further up the page? Hooking up a 12v led/voltmeter to the dealer mode plug and running it to the front so you can monitor 12v feed to the ecu when it dies?
peter079 is offline
post #24 of 26 (permalink) Old 09-20-2019, 11:11 AM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Quote:
Originally Posted by peter079 View Post
If "CHEC" came on when the bike stalled, then I think we came eliminate the fuel pump as being the problem. Have you thought about doing what @billv said further up the page? Hooking up a 12v led/voltmeter to the dealer mode plug and running it to the front so you can monitor 12v feed to the ecu when it dies?
Honestly electrical isnt my forte.
Iím really thinking that itís the ecu. This one was bought on fleabay over 50k ago.
Jimmy boy is offline
post #25 of 26 (permalink) Old 09-24-2019, 07:16 PM
Novice

Join Date: Aug 2019
Posts: 78
I recently bought this for use on a manual fan controller and am impressed. It's small but brighter than hell, runs off of 12V so current limiting resistors aren't needed, only draws 12 mA, and is cheap. Shipping will cost more than the part. The only thing that someone who's electrically challenged would have to watch is the polarity, the longer lead is positive.
Jimmy boy likes this.
billv is offline
post #26 of 26 (permalink) Old 10-03-2019, 12:00 PM Thread Starter
Rider

Jimmy boy's Avatar

Join Date: Feb 2013
Location: San Pedro
Posts: 159
Garage
Latest update. As I said in my last post it started cutting out left and right. Yes every time I cycled the on/off switch on right switch gear it would fire up. Never had any codes.
I put a used ECU on and so far nothing and bike runs very well.
This has taught me that if youíre going to have a older bike or higher mileage bike, that it makes sense to have a spare ECU as it is a complicated to diagnose all the different things that happens. Also spending money on the little things add up a lot. In the end extremely time consuming and I needed a ECU anyhow.
The only problem with used ECU is that I donít know how many miles are on it , and only know that itís just as old as the one I pulled out. New ones are 1,200 dollars. Iím not against buying a new one since my bike at 152,000 miles doesnít owe me anything 😁

Also want to thank all who helped me get through this .
Thanks
rv6john, Spyder13 and Tentontimmy like this.
Jimmy boy is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the GSXR.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in













Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
